Description

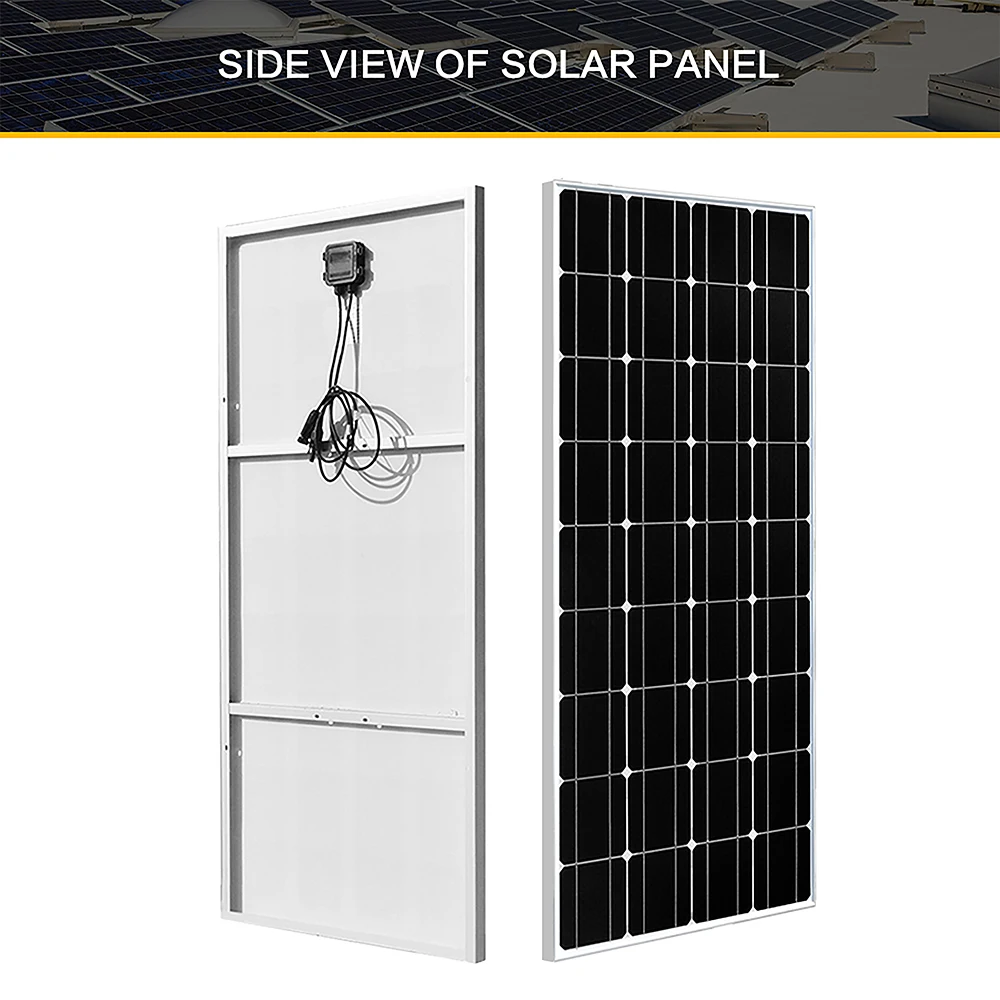

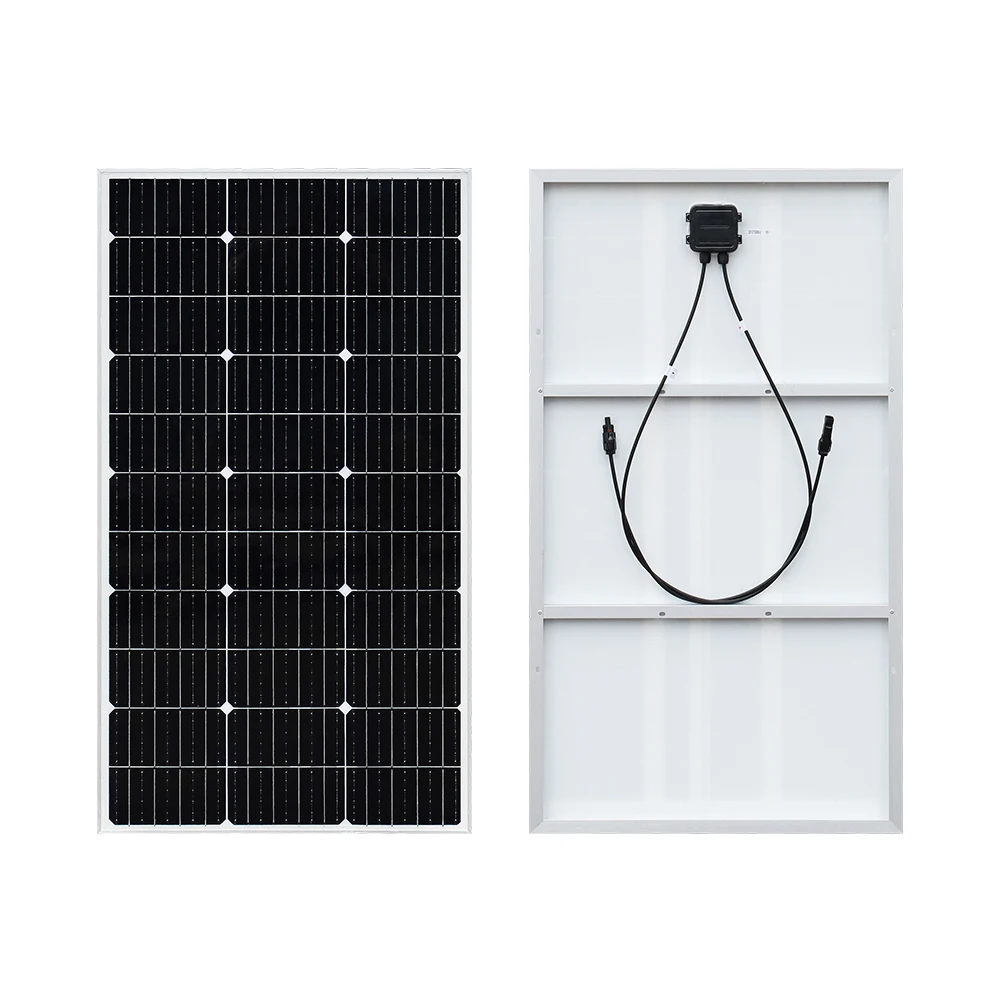

120w 100W 12V Monocrystalline Solar Panel High Efficiency Module PV Power for Battery Charging Boat Caravan RV and Any Other Off Grid Applications

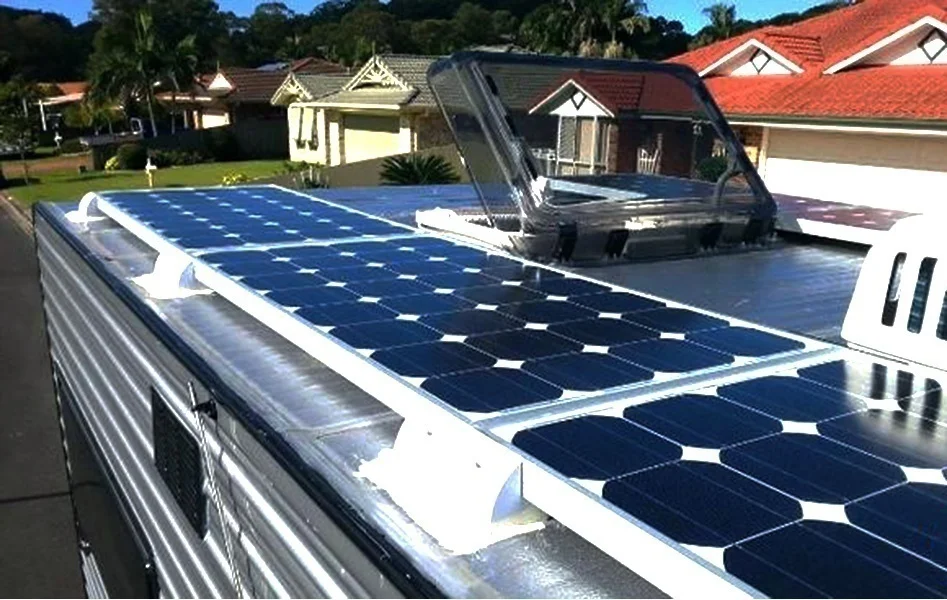

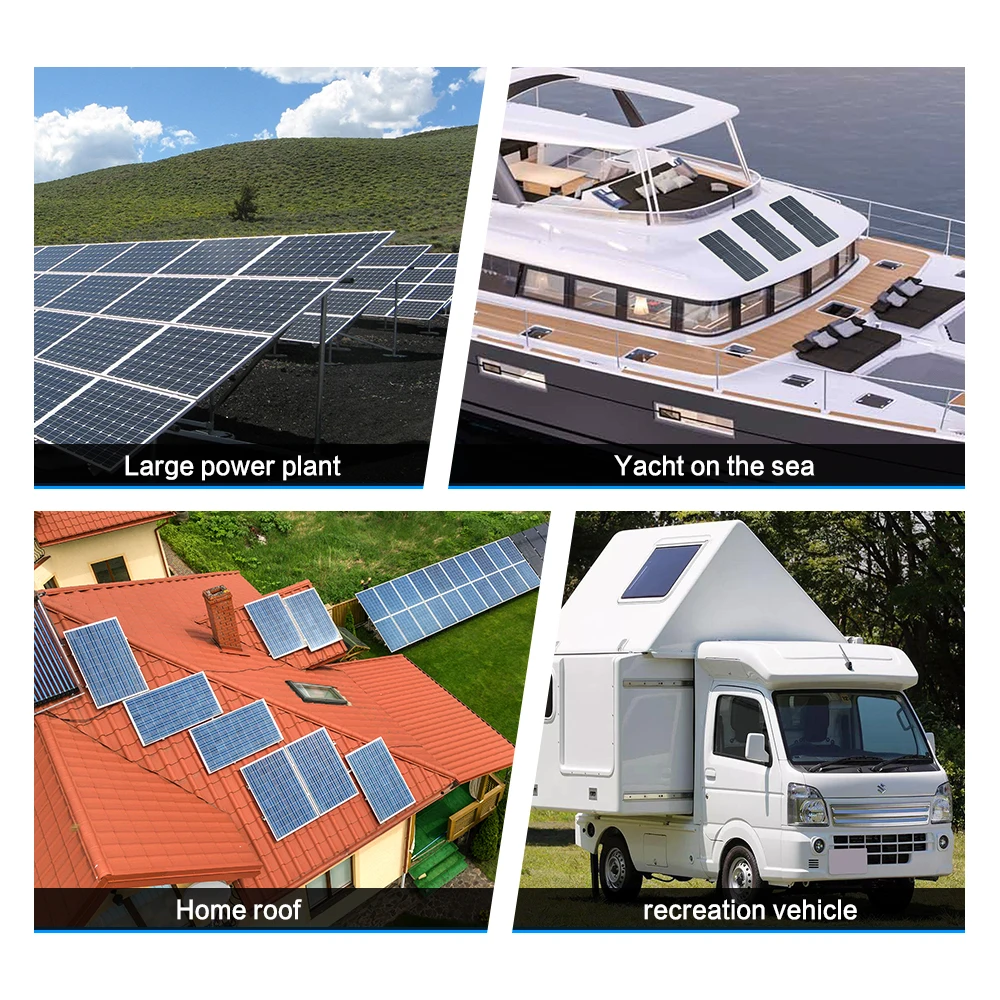

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.Maximum Series Fuse Rating: 15A

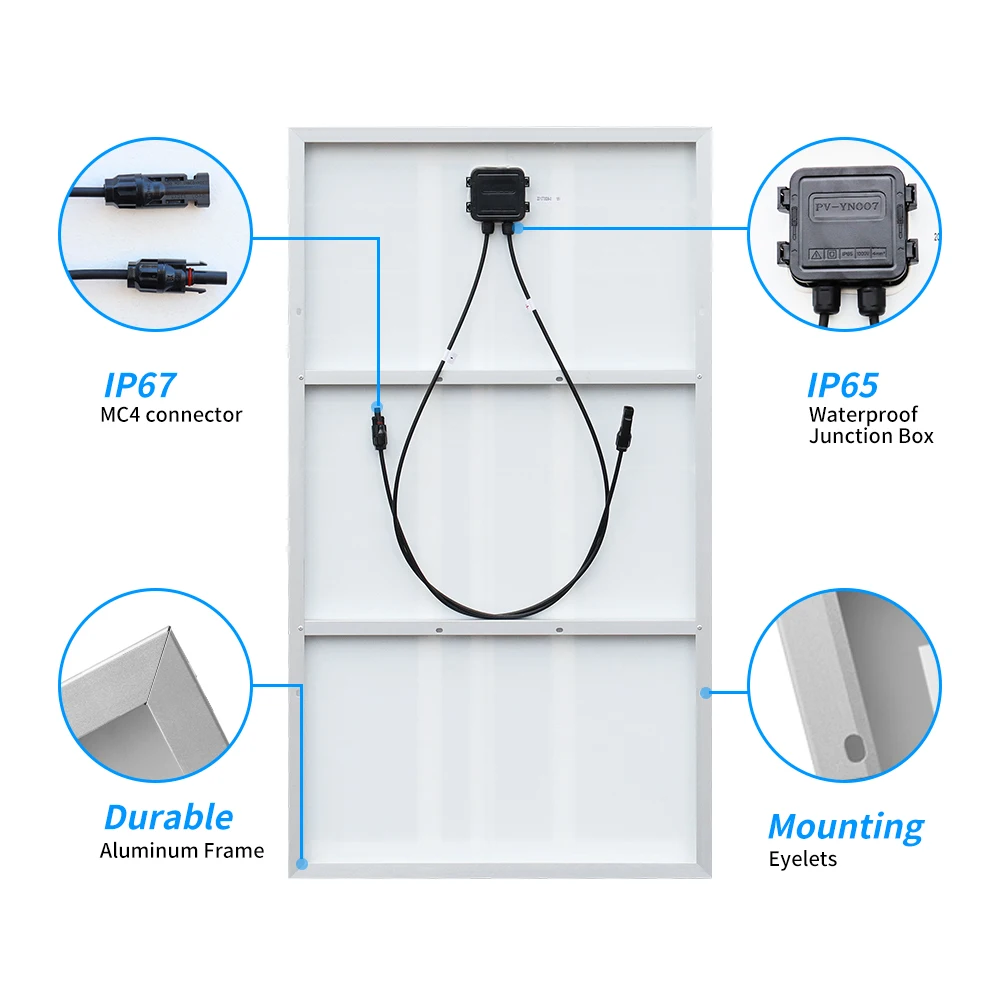

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.

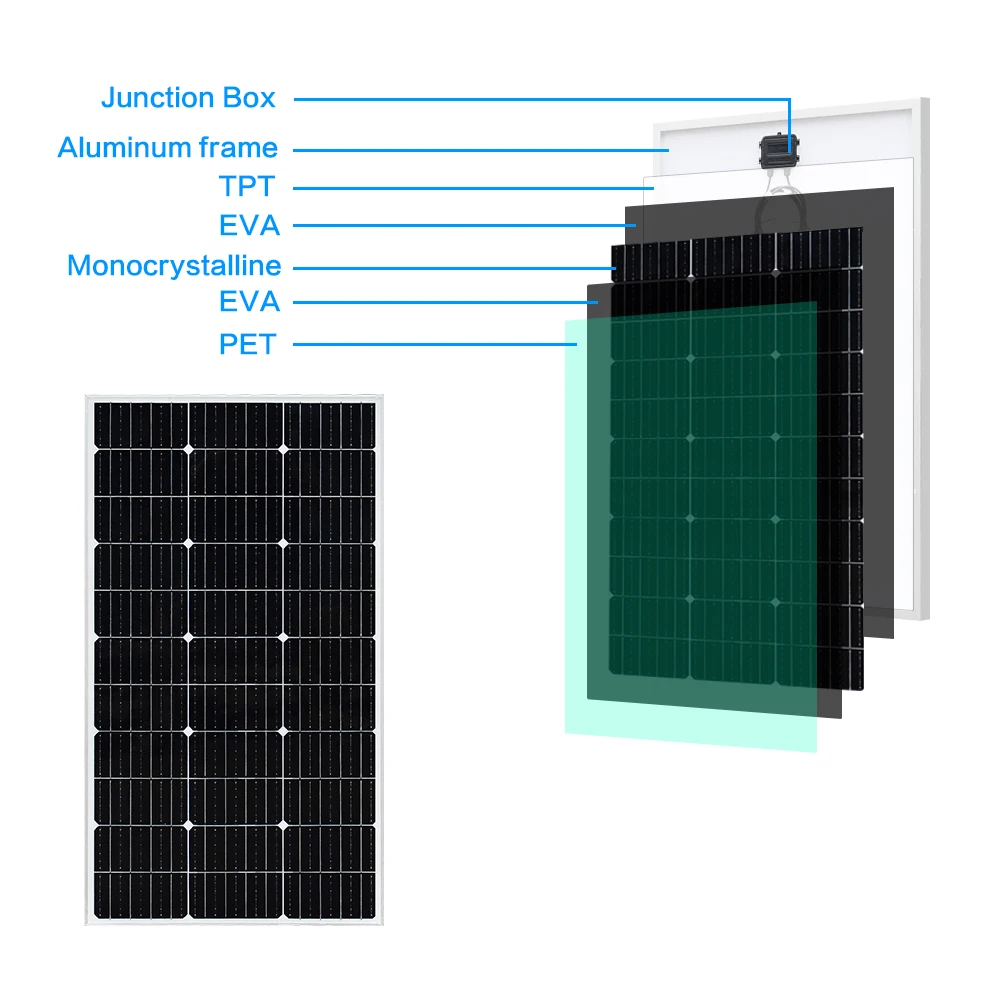

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and snow loads (4000Pa)
1*Technical Parameters:
100w solar panel Specification
Maximum power(Pmax) 100W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.06 A
Maximum power current(Imp) 5.55A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 36pcs
Weight 2800g

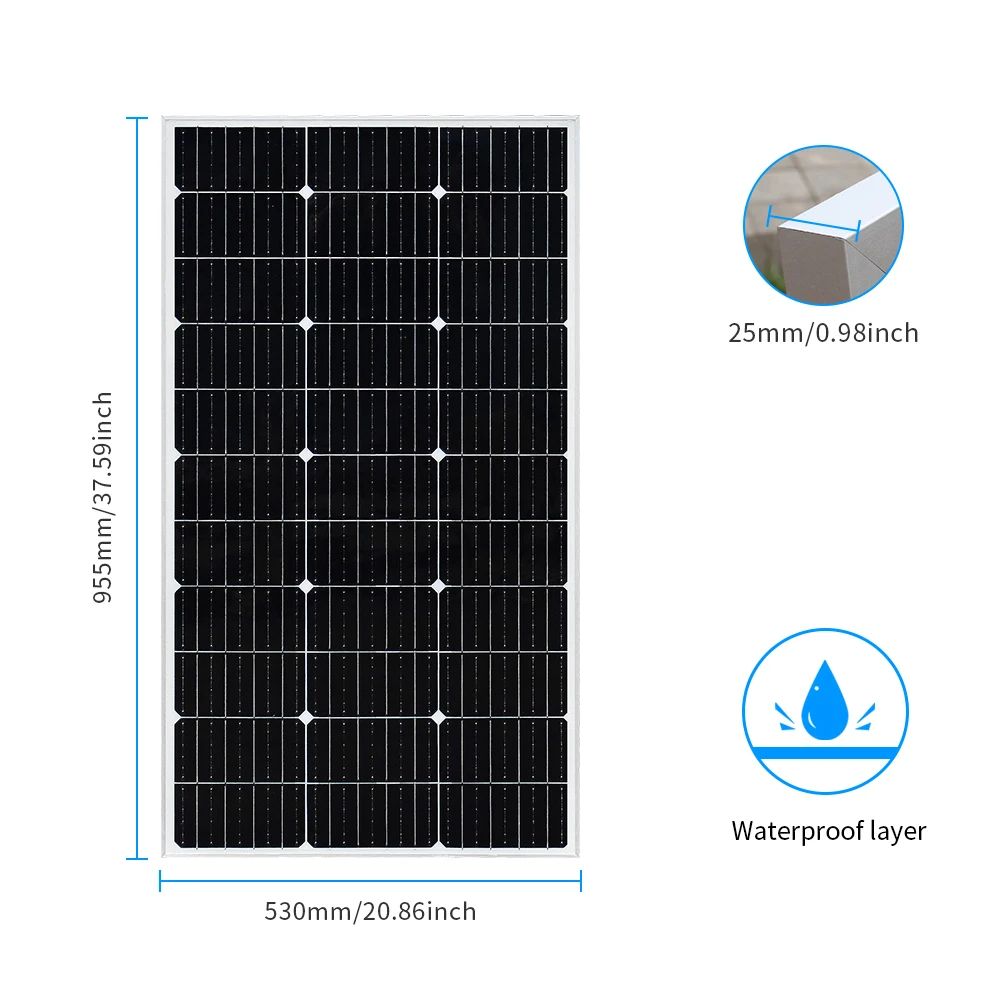

Size 955*530*25*20mm
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5
2*Technical Parameters:
Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.8 A
Maximum power current(Imp) 6.5A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 36pcs
Weight 3100g

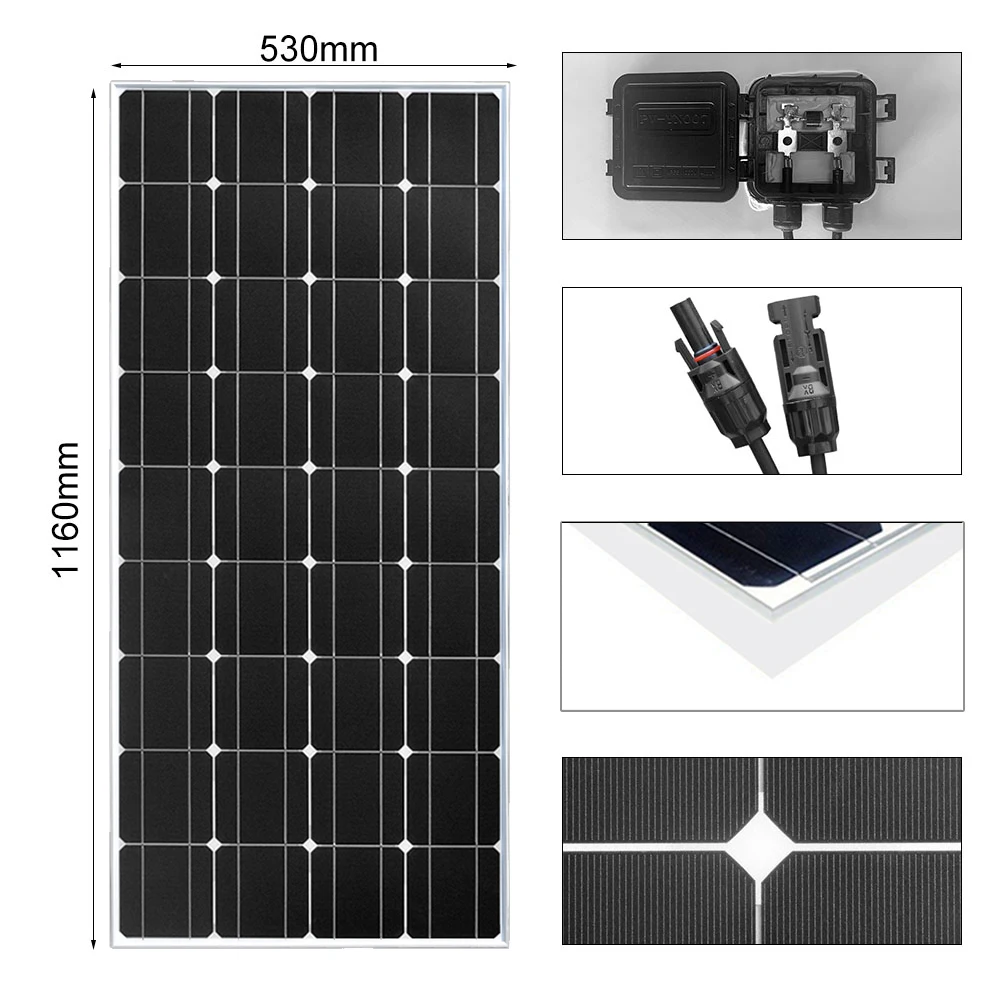

Size 1160*530*25 mm
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5
